PTFE Oil Seal 105*140*12 OE 20035708B
PTFE Oil Seal 105*140*12 OE 20035708B
PTFE Oil Seal 105*140*12 OE 20035708B
PTFE Oil Seal 105*140*12 OE 20035708B
PTFE Oil Seal 105*140*12 OE 20035708B
PTFE Oil Seal 105*140*12 OE 20035708B

PTFE Oil Seal 105*140*12 OE 20035708B

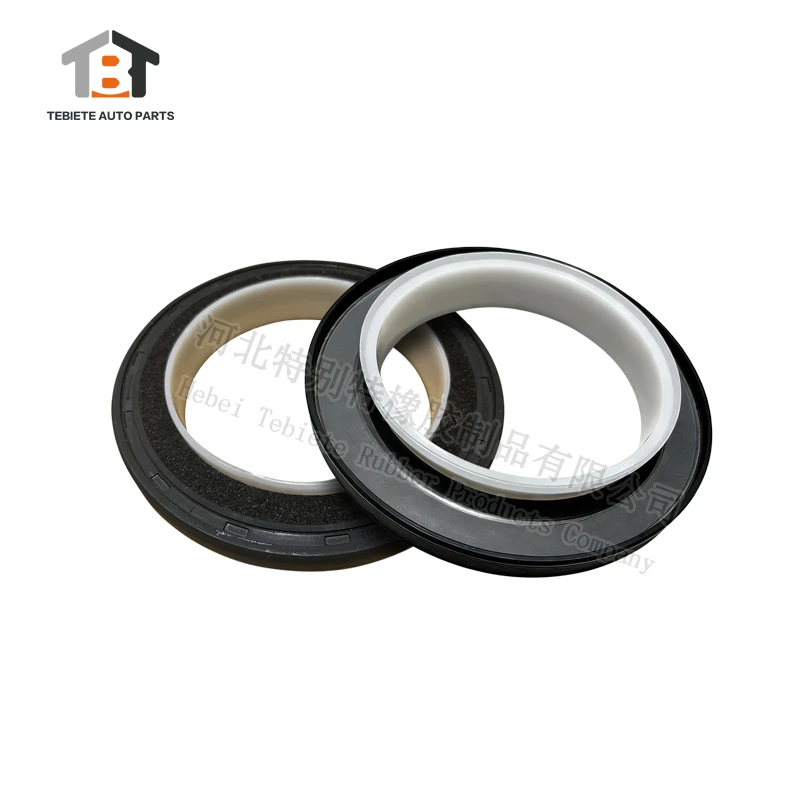

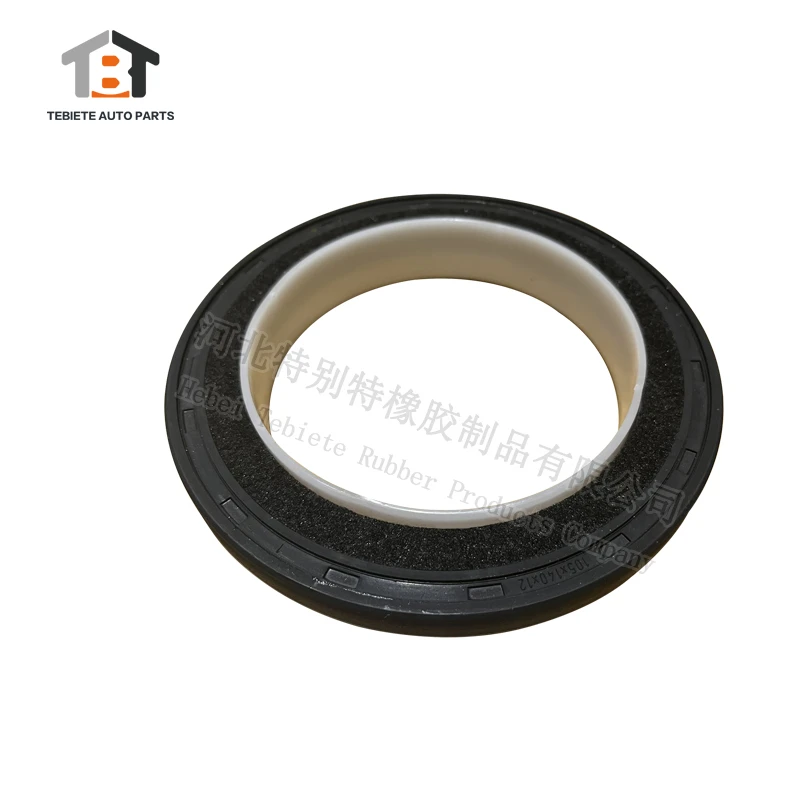

PTFE Oil Seal 105×140×12
Metal casing oil seal with PTFE sealing lip and garter spring. Low friction, excellent wear‑resistance and oil resistance. Designed for transmission / axle output shaft, to prevent gear oil leakage and dirt ingress

Dimensions: Inner diameter 105 mm × Outer diameter 140 mm × Thickness 12 mm Structure: Metal skeleton housing, PTFE sealing lip, built‑in garter spring Material: Sealing lip: PTFE; Housing: cold‑rolled steel plate; NBR rubber coating is optional Features: High temperature resistance, transmission oil resistance and wear resistance. Suitable for working conditions with slight shaft surface wear. Low friction coefficient, good chemical resistance, excellent performance under high‑speed operation. Application: Sealing for transmission / axle output shaft, preventing gear oil leakage and blocking ingress of dust, mud and water.



.

Share:

Advantages Application Certification

Advantages

1.Ultra‑low friction coefficient: much lower than NBR rubber. Low starting torque and less heat generation, ideal for high‑speed shafts, avoids lip burning under dry‑running.
2.Wear‑tolerant: works well on shafts with minor scratches or light wear, good for reused shafts, effectively reduces oil leakage risk.
3.Outstanding media resistance: compatible with various gear oils, transmission fluids and synthetic oils, resistant to chemical corrosion, no swelling or hardening.
4.Wide operating temperature range: stable performance at high and low temperatures, no deformation or brittleness.
5.Superior ageing resistance: resists cracking, hardening and swelling, greatly extends service life.
6.Better dry‑run tolerance: more resistant to temporary oil shortage compared with rubber lip seals.

Application

Certification
